PRODUCT DESCRIPTION
| COMPONENT | CONSTRUCTION CHARACTERISTICS |
| PUMP BODY | Cast iron |
| PUMP SUPPORT | Aluminum |
| MOTOR HOUSING | Aluminum |
| IMPELLER | Brass, AlSl304 SS on demand |
| MOTOR SHAFT | Carbon steel, AISI304 SS on request |
| MECHANICAL SEAL | Ceramic/Graphite |
| BEARINGS | 6201RZ/6201RZ(0.5HP), 6203 RZ/6202RZ(0.75HP&1HP), 6204RZ/6204RZ(1.5HP&2.0OHP&3.0HP) |
 |

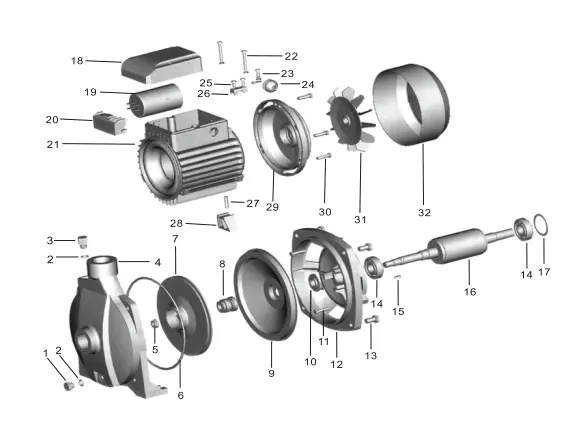

N. |
DESCRIPTION |
N. |
DESCRIPTION |
|
1 |
Discharge plug |
17 |
Split ring |
|
|
2 |
"O" ring |
18 |
Terminal cover |
|
|
3 |
Charge plug |
19 |
Capacitor | |
|
4 |
Pump casing |
20 |
Terminal board | |
|
5 |
Nut |
21 |
Casing with wound stator |
|
|
6 |
Spring gasket |
22 |
Bolt |
|
|
7 |
Impeller |
23 |
Screw |
|
|
8 |
Snap ring |
24 |
Fairlead |
|
|
9 |
Washer |
25 |
Screw |
|
|
10 |
Mechanical seal |
26 |
Cable presser |
|
|
11 |
"O" ring | 27 | Stand pin | |
|
12 |
Pump support |
28 | Stand | |
|
13 |
Bolt |
29 |
Driving cap |
|
|
14 |
Bearing |
30 |
Bolt |
|
|
15 |
Key |
31 |
Fan |
|
|
16 |
Rotor |
32 |
Fan cover |
|
MODEL |
G.W/Pc |
LxWxH |
Q.ty/CTN |
PACKING MATERIALS |
 |
|
kgs |
cm |
||||
|
CPM130 |
9.2 |
28x18x24 |
2 |
CARTON woODEN CASE |
|
|
CPM146 |
12 |
32x21x27 |
2 |
||
|
CPM158 CPM170 |
13 22 |
31x21x28 39x26x32 |
2 1 |
||
|
CPM190 |
23 |
39x26x32 |
1 |
Since 2012
Taizhou Werto Mechanical & Electrical Co., Ltd.
Taizhou Werto Mechanical & Electrical Co., Ltd. is a company which specialized in water pumps and electric motors for the R&D,manufacture and sales.Our company was founded in 2012 and located in China ‘s pump town,Wenling,Zhejiang,China. We are one of modern enterprises which acquire the core technology of water pumps and electric motors,we implement modernization management ,all our products are in conformity with ISO9001 international standard. Besides we have all necessary automation machineries and equipments to keep high productivity and stable quality.
Your contact details
Note: Please leave your contact information and our professionals will contact you as soon as possible!
CPM158B Electric Wire Single Phase Centrifugal Water Pump
Summary:
INSTALLATION AND USE
Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
They are reliable and easy to use, so they are widely used in domestic and civil applications such as the distribution of water in combination with small and medium sized pressure tanks, for transferring liquids and for the irrigation of gardens and orchards.
The pump should be installed in an enclosed environment or sheltered from inclement weather.
MOTOR FEATURE
lnsulation ClassB
Protection IP44
Thermal protector
Continuous service s1
Two-pole induction motor
Single-phase 220V/50Hz, 60Hz on demand
Three-phase 380V/50Hz, 60Hz on demand
OPERATING CONDITION
Suction lift up to 8m
Liquid temperature up to 60°c
Ambient temperature up to 40°c
