PRODUCT DESCRIPTION
| COMPONENT | CONSTRUCTION CHARACTERISTICS |
| PUMP BODY | Cast iron |
| MOTOR HOUSING | AISI304 SS |
| IMPELLER | Cast iron |
| MOTOR SHAFT | Carbon steel, AISI304 SS on request |
| MECHANICAL SEAL | Ceramic/Graphite |
| BEARINGS | 6201RZ/6201RZ(0.18KW&0.25KW),6203RZ/6202RZ(0.45KW&0.75KW),6204RZ/6202RZ(1.1KW&1.5KW).6205RZ/6203RZ(2.2KW) |
 |

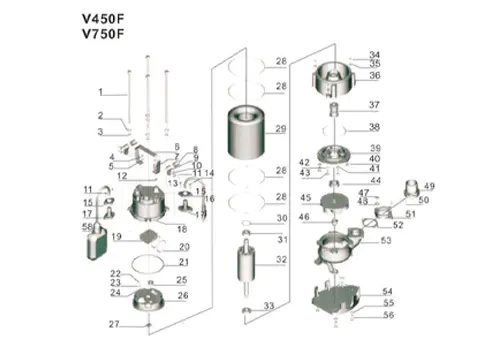

N. |
DESCRIPTION |
N. |
DESCRIPTION |
|
|
1 |
Bolt |
30 |
Undulated washer |
||
|
2 |
Stretching washer |
31 |
Bearing |
||
|
3 |
Washer |
32 |
Rotor |
||
|
4 |
Bolt |
33 |
Bearing |
||
|
5 |
Washer |
34 |
Screw |
||
|
6 |
Handle |
35 |
Washer |
||
|
7 |
Nut |
36 |
Connection part |
||
|
8 |
Protector |
37 |
Mechanical seal |
||
|
9 |
Cable presser |
38 |
"O" ring |
||
|
10 |
Washer |
39 |
Oil chamber cover |
||
|
11 |
Screw |
40 |
Screw |
||
|
12 |
Bolt |
41 |
Washer |
||
|
13 |
"O"ring |
42 |
"O"ring |
||
|
14 |
screw |
43 |
Screw |
||
|
15 |
Flange |
44 |
Oil seal |
||
|
16 |
Cable |
45 |
lmpeller |
||
|
17 |
Cable protector |
46 |
Nut |
||
|
18 |
Capacitor cover |
47 |
Bolt |
||
|
19 |
Capacitor |
48 |
Washer |
||
|
20 |
"O"ring |
49 |
Outlet |
||
|
21 |
Rubber washer |
50 |
"O"ring |
||
|
22 |
Screw |
51 |
Flange |
||
|
23 |
Stretching washer |
52 |
Rubber washer |
||
|
24 |
Washer |
53 |
Pump body |
||
|
25 |
Line protector |
54 |
Base plate |
||
|
26 |
Motor cover |
55 |
Washer |
||
|
27 |
Thermal protector |
56 |
Screw |
||
|
28 |
"O" ring |
57 |
Float switch |
||
|
29 |
Stator |
||||
|

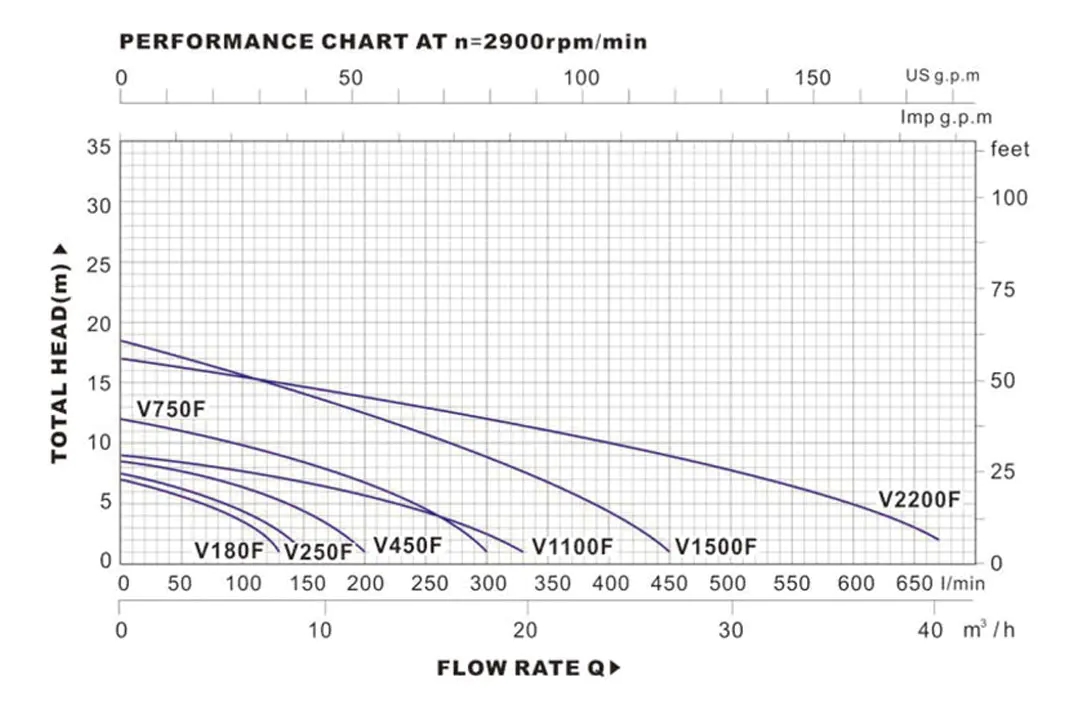

MODEL |
Power |
Out diameter |
Voltage |
Max.flow |
Max.head |
Max.Diameter of inclusion |
G.W |
Packing dimension |
|
KW |
MM |
V/Hz |
L/MIN |
M |
MM |
KGS |
CM |
|
|
V180F |
0.18 |
40,32,25 |
220/50 |
133 |
7 |
15 |
9 |
18.5*18*36 |
|
V250F |
0.25 |
40,32,25 |
220/50 |
150 |
7.5 |
15 |
9.5 |
18.5*18*38 |
|
V450F |
0.45 |
50 |
220/50 |
200 |
8.5 |
25 |
18 |
25.5*19.5*49.5 |
|
V750F |
0.75 |
50 |
220/50 |
300 |
12 |
25 |
22 |
25.5*19.5*53.5 |
|
V1100F |
1.1 |
50 |
220/50 |
333 |
9 |
35 |
23.5 |
27.5*22.5*55.5 |
|
V1500F |
1.5 |
50 |
220/50 |
450 |
18.5 |
20 |
28 |
58.5*35*24.5 |
|
V2200F |
2.2 |
75 |
220/50 |
700 |
17 |
20 |
35 |
58.5*35*24.5 |
Since 2012
Taizhou Werto Mechanical & Electrical Co., Ltd.
Taizhou Werto Mechanical & Electrical Co., Ltd. is a company which specialized in water pumps and electric motors for the R&D,manufacture and sales.Our company was founded in 2012 and located in China ‘s pump town,Wenling,Zhejiang,China. We are one of modern enterprises which acquire the core technology of water pumps and electric motors,we implement modernization management ,all our products are in conformity with ISO9001 international standard. Besides we have all necessary automation machineries and equipments to keep high productivity and stable quality.
Your contact details
Note: Please leave your contact information and our professionals will contact you as soon as possible!
V1500F submersible sweage pump
Summary:
INSTALLATION AND USE
Suitable for use with dirty water that is not chemically aggressive towards the materials from which the pump is made.
As a result of their reliability and the fact that they are easy to use, they are suitable for use in applications such as clearing dirty water, discharging domestic waster water, and for emptying collection traps containing partical up to a maximum of ∅35mm.
MOTOR FEATURE
lnsulation ClassB
Protection IP68
Thermal protector
Continuous service S1
Two-pole induction motor
Single-phase 220V/50Hz, 60Hz on demand
Three-phase 380V/50Hz, 60Hz on demand
OPERATING CONDITION
Maximum immersion depth 5m
Liquid temperature up to 60°C
Ambient temperature up to 40°C
