PRODUCT DESCRIPTION
| COMPONENT | CONSTRUCTION CHARACTERISTICS |
| PUMP BODY | Cast iron, with brass/AISI304 SS sheet insert on request(Anti-blocking) |
| PUMP SUPPORT | Cast iron, with brass/AlSI304 SS sheet insert on request(Anti-blocking) |
| MOTOR HOUSING | Aluminum |
| IMPELLER | Brass |
| MOTOR SHAFT | Carbon steel, AlSI304 SS on request |
| MECHANICAL SEAL | Ceramic/Graphite |
| BEARINGS | 6201RZ/6201Rz(0.5HP), 6202 RZ/6202RZ(0.75HP&1HP) |
|
MODEL |
INLET/OUTLET |
POWER |
Q m³/h |
0 |
0.3 |
0.6 |
0.9 |
1.2 |
1.5 |
1.8 |
2.1 |
|
|
Single phase |
Inch |
KW |
HP |
l/min |
0 |
5 |
10 |
15 |
20 |
25 |
30 |
35 |
|
PM-45 |
1"×1" |
0.37 |
0.5 |
H(m) |
35 |
30 |
25 |
20 |
15 |
10.5 |
6.5 |
3 |
H=TOTAL HEAD IN METERS. Q=FLOW RATE
|
MODEL |
G.W/Pc |

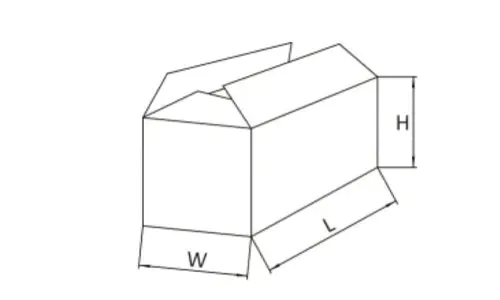

LxWxH |
Q.ty/CTN |
PACKING MATERIALS |
 |
|
kgs |
cm |
||||
|
PM-45 |
5.25 |
28x15x17 |
4 |
CARTON |
Since 2012
Taizhou Werto Mechanical & Electrical Co., Ltd.
Taizhou Werto Mechanical & Electrical Co., Ltd. is a company which specialized in water pumps and electric motors for the R&D,manufacture and sales.Our company was founded in 2012 and located in China ‘s pump town,Wenling,Zhejiang,China. We are one of modern enterprises which acquire the core technology of water pumps and electric motors,we implement modernization management ,all our products are in conformity with ISO9001 international standard. Besides we have all necessary automation machineries and equipments to keep high productivity and stable quality.
Your contact details
Note: Please leave your contact information and our professionals will contact you as soon as possible!
PM Series Pressure Electric Peripheral Water Pumps
Summary:
MOTOR FEATURE
Insulation ClassB
Protection IP44
Thermal protector
Continuous service SI
Two-pole induction motor
Single-phase 220V/50Hz, 60Hz on demand
Three-phase 380V/50Hz, 60Hz on demand
OPERATING CONDITION
Suction lift up to 8m
Liquid temperature up to 60°C
Ambient temperature up to 40°C
INSTALLATION AND USE
Suitable for use with clean water that does not contain abrasive particles and liquids that are not chemically aggressive towards the materials from which the pump is made.
They are easy to use and are economical, they are ideal for domestic use and in particular for distributing water in combination with small pressure sets and for the irrigation of gardens and allotments.
The pump should be installed in an enclosed environment, or sheltered from inclement weather.
