PRODUCT DESCRIPTION
| COMPONENT | CONSTRUCTION CHARACTERISTICS |
| PUMP BODY | Cast iron |
| MOTOR HOUSING | Aluminum(Cast iron on demand) |
| IMPELLER | Aluminum |
| MOTOR SHAFT | Carbon steel, AISI304 SS on request |
| MECHANICAL SEAL | Ceramic/Graphite |
| BEARINGS | 6201 RZ/6201 RZ(0.5HP), 6203 RZ/6202 RZ(0.75HP&1HP) |
| 6204RZ/6202RZ(1.5HP&2HP) |
 |

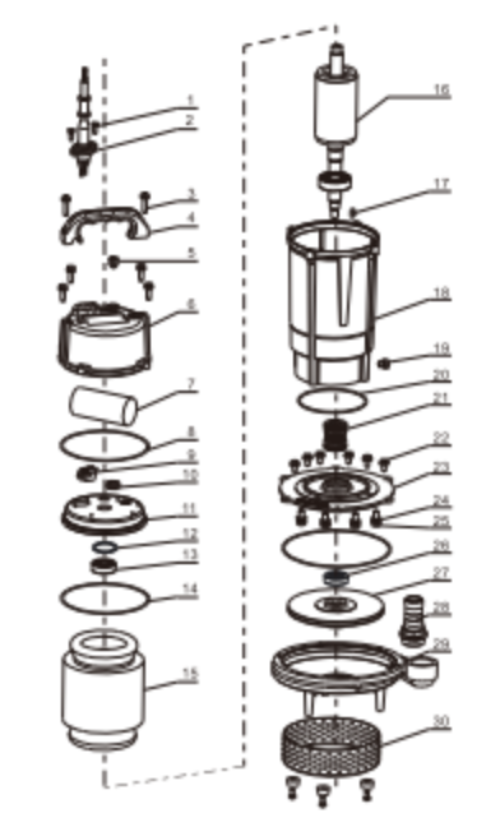

N. |
DESCRIPTION |
N. |
DESCRIPTION |
|
1 |
Hexagon bolt |
16 |
Rotor |
|
|
2 |
Cable adapter sleeve |
17 |
Flat key |
|
|
3 |
Cross recessed pan head |
18 |
Enciosure |
|
|
4 |
Handle |
19 |
slotted cheese-head screw |
|
|
5 |
Slotted cheese-head screw |
20 |
"O"ring | |
|
6 |
Top cover |
21 |
Mechanical seal |
|
|
7 |
Capacitor |
22 |
Hexagon blot with flange |
|
|
8 |
O_ring |
23 |
Oil chamber cover |
|
|
9 |
Themal protector |
24 |
Flat washer |
|
|
10 |
Lead wire sheath |
25 |
Hexagon bolt |
|
|
11 |
Upper bearing block |
26 |
Framework oil seal |
|
|
12 |
Wave spring |
27 |
impeller |
|
|
13 |
Deep groove bal |
28 |
Outet joint |
|
|
14 |
O_ring |
29 |
Pump casing |
|
|
15 |
Stator core with winding |
30 |
Mesh enclosure |
|
MODEL |
G.W/PC |
LxWxH |
Q.ty/CTN |
PACKING MATERIALS |
 |
|
kgs |
cm |
||||
|
QDX1.5-12-0.25 |
5 |
36x16x20 |
2 |
CARTON |
|
|
QDX1.5-17-0.37 |
7 |
38x16x20 |
2 |
||
|
QDX1.5-25-0.55 |
9.5 |
40x20x22 |
2 |
||
|
QDX3-18-0.55 |
9.5 |
41x20x22 |
2 |
||
|
QDX10-12-0.55 |
9.5 |
41x21x22 |
2 |
||
|
QDX15-7-0.55 |
9.5 |
41x21x22 |
2 |
||
|
QDX1.5-32-0.75 |
11.5 |
42x21x23 |
2 |
||
|
QDX3-24-0.75 |
11.5 |
41x20x22 |
2 |
||
|
QDX8-18-0.75 |
11 |
42x20x23 |
2 |
||
|
QDX10-16-0.75 |
11 |
42x20x23 |
2 |
||
|
QDX15-14-1.1 |
16.5 |
47x28x22 |
1 |
WOODEN CASE |
|
|
QDX40-6-1.1 |
18 |
51x28x22 |
1 |
||
|
QX25-12-1.5 |
17 |
51x28x22 |
1 |
||
|
QX40-9-1.5 |
19 |
53x28x22 |
1 |
FLOAT SWITCH ON DEMAND
Keywords:
Since 2012
Taizhou Werto Mechanical & Electrical Co., Ltd.
Taizhou Werto Mechanical & Electrical Co., Ltd. is a company which specialized in water pumps and electric motors for the R&D,manufacture and sales.Our company was founded in 2012 and located in China ‘s pump town,Wenling,Zhejiang,China. We are one of modern enterprises which acquire the core technology of water pumps and electric motors,we implement modernization management ,all our products are in conformity with ISO9001 international standard. Besides we have all necessary automation machineries and equipments to keep high productivity and stable quality.
Your contact details
Note: Please leave your contact information and our professionals will contact you as soon as possible!
QDX1.5-12-0.25 Single Phase Float Switch Copper Wire Submersible Water Pump
Summary:
INSTALLATION AND USE
Suitable for use with clean water that does not contain abrasive particles.
As a result of their reliability and the fact that they are easy to use, they are suitable for use in applications such asdomestic, gardening, irrigation and emptying tanks.
MOTOR FEATURE
lnsulation ClassB
Protection IP68
Thermal protector
Continuous service S1
Two-pole induction motor
Single-phase 220V/50Hz, 60Hz on demand
Three-phase 380V/50Hz, 60Hz on demand
OPERATING CONDITION
Maximum immersion depth 5m
Liquid temperature up to 60°C
Ambient temperature up to 40°C
