PRODUCT DESCRIPTION
| COMPONENT | CONSTRUCTION CHARACTERISTICS |
| PUMP BODY | Cast iron |
| PUMP SUPPORT | Castiron Or Aluminum |
| MOTOR HOUSING | Aluminum |
| IMPELLER | AISI304SS |
| MOTOR SHAFT | Carbon steel,AiS1304 SS on request |
| MECHANICAL SEAL | Ceramic/Graphite |
| BEARINGS | 6202RZ/6202RZ(0.5HP&0.8HP&1HP) |
 |

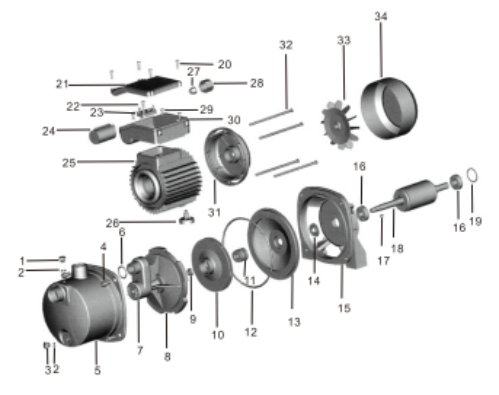

N.DESCRIPTION |
N.DESCRIPTION |
||
|
1 |
Charge plug |
18 |
Rotor |
|
|
2 |
“O”ring |
19 |
Split ring |
|
|
3 |
Discharge plug |
20 |
Screw |
|
|
4 |
Bolt |
21 |
Terminal cover |
|
|
5 |
Pump casing |
22 |
Screw |
|
|
6 |
"O" ring |
23 |
Terminal board |
|
|
7 |
Venturi pipe |
24 |
Capacitor |
|
|
8 |
Diffuser |
25 |
Casing with wound stator |
|
|
g |
Nut |
26 |
Stand |
|
|
10 |
Impeller |
27 |
Fairlead |
|
|
11 |
Mechanicalseal |
28 |
Nut |
|
|
12 |
“O” ring |
29 |
Screw |
|
|
13 |
Pump casing cover |
30 |
Terminal box |
|
|
14 |
Drops guard |
31 |
Drivina cap |
|
|
15 |
Pump support |
32 |
Tie-rod |
|
|
16 |
Bearing |
33 |
Fan |
|
|
17 |
Key |
34 |
Fan cover |
|
|

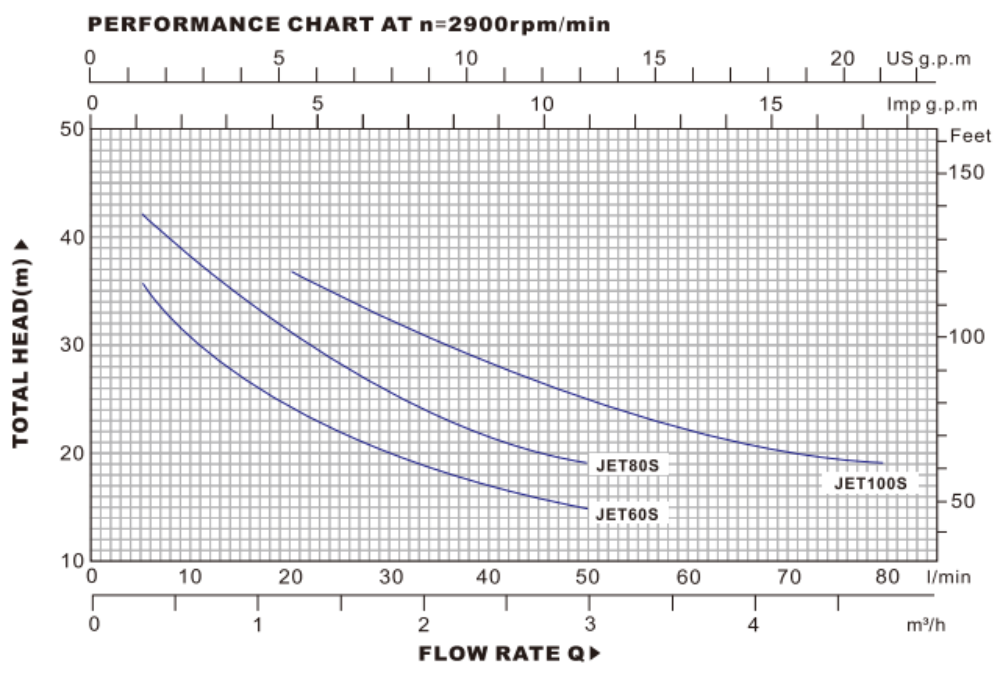

MODEL |
INLET/OUTLET |
POWER |
Q m3Th |
0 |
0.3 |
0.6 |
0.9 |
1.2 |
1.5 |
1.8 |
2.1 |
2.4 |
3.0 |
4.2 |
4.8 |
|
|
Single phase |
Inch |
kw |
HP |
l/min |
0 |
5 |
10 |
20 |
25 | 30 | 35 | 40 | 50 |
60 |
70 |
80 |
|
JET60S |
1"×1 |
0.37 |
0.5 |
H m |
38 |
36 |
27 |
24 |
22 |
20 |
19 | 17 | 15 | |||
|
JET80S |
1"×1 |
0.6 |
0.8 |
42 |
38 |
31 |
29 |
26 |
24 |
22 | 19 | 16 | ||||
|
JET100S |
1"×1 |
0.75 |
1 |
46 |
41 |
39 |
37 |
35 |
32 |
30 | 28 | 25 | 9 | 21 | 19 | |
H-1U1AL HEAD IN METERS. Q=FLOW RATE
