PRODUCT DESCRIPTION
| Part name | Material |
| Pump barrel | AISI304 SS |
| Intake joint | AISI304 SS |
| Effluent joint | AISI304 SS |
| Volute | PC |
| Impeller | POM |
| Coupling | AISI304SS |
| Barrel | AISI304 SS |
| Upper bearing seat | Cast iron |
| Base | AISI304 SS |
| Mechanical seal | Silicon carbide |
| Motor shaft | AISI304 SS-40Cr welding |
| Bearings | Well-known brand bearings |
| Electric motor oil | Food machine oil |
| Model | Power | Pump parameterRPM≈2850r/ min | ||||||||||||
| single phase (220V) |
Three-phase (380V) |
Kilowatt (kW) |
Outlet diameter (mm) |
Flow (m³/h) |
0 | 3 | 6 | 9 | 12 | 15 | 17 | 18 | 21 | 24 |
| 6SPM17-3 C4 | 6SP17-1C4 | 0.75 | G3 | Head (m) |
11 | 11 | 11 | 10 | 10 | 9 | 8 | 7 | 6 | 4 |
| 6SPM17-2 C4 | 6SP17-2 C4 | 1.1 | 22 | 22 | 22 | 21 | 19 | 17 | 16 | 15 | 12 | 8 | ||
| 6SPM17-3 C4 | 6SP17-3 C4 | 1.5 | 33 | 33 | 32 | 31 | 29 | 26 | 24 | 22 | 17 | 12 | ||
| 6SPM17-4 C4 | 6SP17-4 C4 | 2.2 | 44 | 44 | 43 | 42 | 39 | 35 | 32 | 30 | 23 | 15 | ||
| 6SPM17-5 C4 | 6SP17-5 C4 | 3 | 55 | 55 | 54 | 52 | 49 | 44 | 39 | 37 | 29 | 19 | ||
| — | 6SP17-7 C4 | 4 | 77 | 77 | 75 | 73 | 68 | 61 | 55 | 52 | 40 | 27 | ||
| — | 6SP17-9 C4 | 5.5 | 99 | 99 | 97 | 94 | 88 | 79 | 71 | 67 | 52 | 35 | ||
| — | 6SP17-11 C4 | 7.5 | 121 | 121 | 119 | 115 | 107 | 96 | 87 | 82 | 63 | 42 | ||

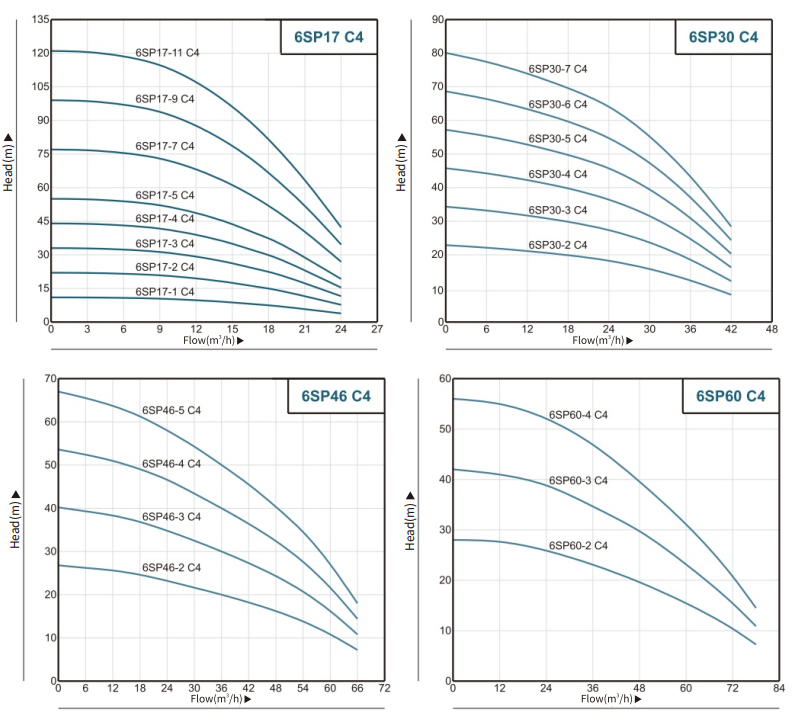

6SP C4 Series performance parameter 30T
| Model | Power | Pump parameterRPM≈2850r/ min | ||||||||||
| single phase (220V) |
Three-phase (380V) |
Kilowatt (kW) |
Outlet diameter (mm) |
Flow (m³/h) |
0 | 6 | 12 | 18 | 24 | 30 | 36 | 42 |
| 6SPM30-2 C4 | 6SP30-2 C4 | 2.2 | G3 | Head (m) |
23 | 22 | 21 | 20 | 18 | 16 | 12 | 8 |
| 6SPM30-3 C4 | 6SP30-3 C4 | 3 | 34 | 33 | 32 | 30 | 28 | 24 | 19 | 12 | ||
| — | 6SP30-4 C4 | 4 | 46 | 44 | 42 | 40 | 37 | 32 | 25 | 16 | ||
| — | 6SP30-5 C4 | 5.5 | 57 | 55 | 53 | 50 | 46 | 39 | 31 | 20 | ||
| — | 6SP30-6 C4 | 5.5 | 69 | 66 | 63 | 60 | 55 | 47 | 37 | 24 | ||
| — | 6SP30-7 C4 | 7.5 | 80 | 77 | 74 | 70 | 64 | 55 | 43 | 28 | ||
6SP C4 Series performance parameter 46T
| Model | Power | Pump parameterRPM≈2850r/ min | |||||||||||||||
| single phase (220V) |
Three-phase (380V) |
Kilowatt (kW) |
Outlet diameter (mm) |
Flow (m³/h) |
0 | 6 | 12 | 18 | 24 | 30 | 36 | 42 | 46 | 48 | 54 | 60 | 66 |
| 6SPM46-2 C4 | 6SP46-2 C4 | 3 | G3 | Head (m) |
27 | 26 | 26 | 25 | 23 | 22 | 20 | 18 | 17 | 16 | 14 | 11 | 7 |
| — | 6SP46-3 C4 | 4 | 40 | 39 | 38 | 37 | 35 | 32 | 30 | 27 | 25 | 24 | 21 | 16 | 11 | ||
| — | 6SP46-4 C4 | 5.5 | 54 | 52 | 51 | 49 | 46 | 43 | 40 | 36 | 34 | 32 | 28 | 22 | 14 | ||
| — | 6SP46-5 C4 | 7.5 | 67 | 66 | 64 | 62 | 58 | 54 | 50 | 46 | 42 | 41 | 35 | 27 | 18 | ||
6SP C4 Series performance parameter 60T
| Model | Power | Pump parameterRPM≈2850r/ min | |||||||||
| Three-phase (380V) |
Kilowatt (kW) |
Outlet diameter (mm) |
Flow (m³/h) |
0 | 12 | 24 | 36 | 48 | 60 | 72 | 78 |
| 6SP60-2 C4 | 4 | G4 | Head (m) |
28 | 28 | 26 | 22 | 19 | 16 | 10 | 7 |
| 6SP60-3 C4 | 5.5 | 42 | 42 | 39 | 33 | 29 | 23 | 16 | 11 | ||
| 6SP60-4 C4 | 7.5 | 56 | 56 | 52 | 44 | 39 | 31 | 21 | 15 | ||
Keywords:
Since 2012
Taizhou Werto Mechanical & Electrical Co., Ltd.
Taizhou Werto Mechanical & Electrical Co., Ltd. is a company which specialized in water pumps and electric motors for the R&D,manufacture and sales.Our company was founded in 2012 and located in China ‘s pump town,Wenling,Zhejiang,China. We are one of modern enterprises which acquire the core technology of water pumps and electric motors,we implement modernization management ,all our products are in conformity with ISO9001 international standard. Besides we have all necessary automation machineries and equipments to keep high productivity and stable quality.
Your contact details
Note: Please leave your contact information and our professionals will contact you as soon as possible!

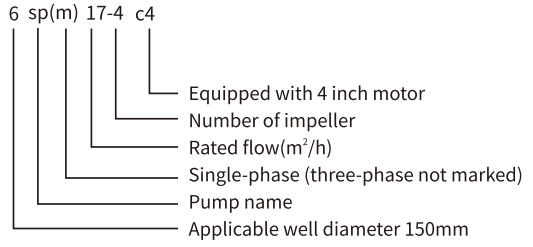

6SP C4 DEEP WELL SUBMERSIBLE PUMP
Summary:
Maximum entry depth:150m
Minimum well diameter:150mm
Oil-filled rewind motor
Single-phase:180-230V/50Hz
Three-phase:1350--400V/50Hz
Can be equipped with manual,ordinary control boxor digital automatic control box pump designed with an integral fixed impeller
