PRODUCT DESCRIPTION


Part name | Material |
Outlet section | AISI304 SS |
Pump barrel | AISI201 SS |
Base | AISI201 SS |
Volute | PPO |
Impeller | PPO |
Barrel | AISI201 SS |
Upper bearing seat | HT250 |
Lower bearing seat | HT250 |

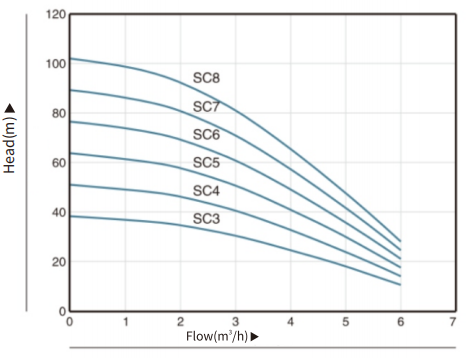

SC Series performance parameter
Model | Power | Pump parameterRPM≈2850r/ min | |||||||||
Single phase (220V) |
Three-phase (380V) |
Kilowatt (kW) |
Outlet diameter (mm) |
Flow (m³/h) |
0 | 1 | 2 | 3 | 4 | 5 | 6 |
125SCM3 | 125SCM3 | 0.6 | 32 | Head (m) |
38 | 37 | 35 | 30 | 25 | 18 | 11 |
125SCM4 | 125SCM4 | 0.8 | 51 | 49 | 46 | 41 | 33 | 24 | 14 | ||
125SCM5 | 125SCM5 | 0.95 | 64 | 61 | 58 | 51 | 41 | 30 | 18 | ||
125SCM6 | 125SCM6 | 1.1 | 77 | 74 | 69 | 61 | 49 | 36 | 21 | ||
125SCM7 | 125SCM7 | 1.3 | 89 | 86 | 81 | 71 | 57 | 42 | 25 | ||
125SCM8 | 125SCM8 | 1.5 | 102 | 98 | 92 | 81 | 65 | 48 | 28 |
Keywords:
Since 2012
Taizhou Werto Mechanical & Electrical Co., Ltd.
Taizhou Werto Mechanical & Electrical Co., Ltd. is a company which specialized in water pumps and electric motors for the R&D,manufacture and sales.Our company was founded in 2012 and located in China ‘s pump town,Wenling,Zhejiang,China. We are one of modern enterprises which acquire the core technology of water pumps and electric motors,we implement modernization management ,all our products are in conformity with ISO9001 international standard. Besides we have all necessary automation machineries and equipments to keep high productivity and stable quality.
Your contact details
Note: Please leave your contact information and our professionals will contact you as soon as possible!

125SCM Deep Well Submersible Pump
Summary:
Maximum sediment content:0.15%
Minimum well diameter:130mm
Single-phase: 180-230V/50Hz
Three-phase:350-400V/50Hz
Can be equipped with manual, ordinary control box or digital automatic control box
