PRODUCT DESCRIPTION

COMPONENT	CONSTRUCTION CHARACTERISTICS
PUMP BODY	Cast iron
PUMP SUPPORT	Cast iron
MOTOR HOUSING	Aluminum(2HP&3HP&4HP), Cast iron(5.5HP and above)
IMPELLER	Cast iron
MOTOR SHAFT	Carbon steel,AISI304 SS on request
MECHANICAL SEAL	Ceramic/ Graphite
BEARINGS	6305 RZ/6204 RZ(2HP&3HP),6305 RZ/6205 RZ(4HP)

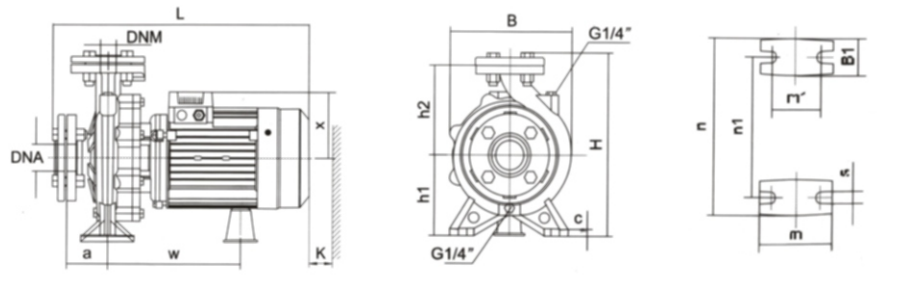

Technical Parameters(7.5kWand below)

Pump Model	DNM	DNA	a	h2	W	x	B1	c	h1	m	ml	n	n1	s	B	H	L	K
32-125/07	32	50	80	140	223	113	48	12	112	100	70	190	140	17	192	281	428	85
32-125/11	32	50	80	140	223	113	48	12	112	100	70	190	140	17	192	281	427	85
32-160/15	32	50	80	160	231	123	50	16	132	100	70	240	190	17	240	321	430	95
32-160/22	32	50	80	160	266	141	50	16	132	100	70	240	190	17	240	321	496	95
32-160/30	32	50	80	160	266	141	50	16	132	100	70	240	190	17	240	321	496	95
32-200/30	32	50	80	180	258	127	48	12	132	100	70	240	190	17	248	369	490	95
32-200/40	32	50	80	180	258	127	48	12	180	125	95	240	190	17	248	369	490	95
32-250/55	32	50	100	230	254	180	65	14	180	125	95	320	250	17	320	439	557	60
32-250/75	32	50	100	230	254	180	65	14	112	100	70	320	250	17	320	439	587	60
40-125/11	40	65	80	140	255	127	45	12	112	100	70	210	160	17	218	282	489	95
40-125/15	40	65	80	140	255	127	45	12	112	100	70	210	160	17	218	282	489	95
40-125/22	40	65	80	140	255	127	45	12	132	100	70	210	160	17	218	282	489	95
40-160/30	40	65	80	168	238	127	48	12	132	100	70	240	190	17	249	330	494	105
40-160/40	40	65	80	168	238	127	48	12	160	100	70	240	190	17	249	330	494	105
40-200/55	40	65	100	180	259	180	50	12	160	100	70	264	212	17	275	370	553	105
40-200/75	40	65	100	180	259	180	50	12	132	100	70	264	212	17	275	370	583	105
50-125/22	50	65	100	160	262	127	50	12	132	100	70	260	190	17	243	322	518	110
50-125/30	50	65	100	160	262	127	50	12	132	100	70	260	190	17	243	322	518	110
50-125/40	50	65	100	160	262	127	50	12	160	100	70	260	190	17	243	322	518	110
50-160/55	50	65	100	180	262	180	52	12	160	100	70	264	212	17	272	370	556	110
50-160/75	50	65	100	180	262	180	52	12	160	100	70	264	212	17	272	370	586	110
65-125/40	65	80	100	180	265	180	68	14	160	125	95	280	212	17	283	372	564	110
65-125/55	65	80	100	180	265	180	68	14	160	125	95	280	212	17	283	372	564	110
65-125/75	65	80	100	180	265	180	68	14	160	125	95	280	212	17	283	372	564	110

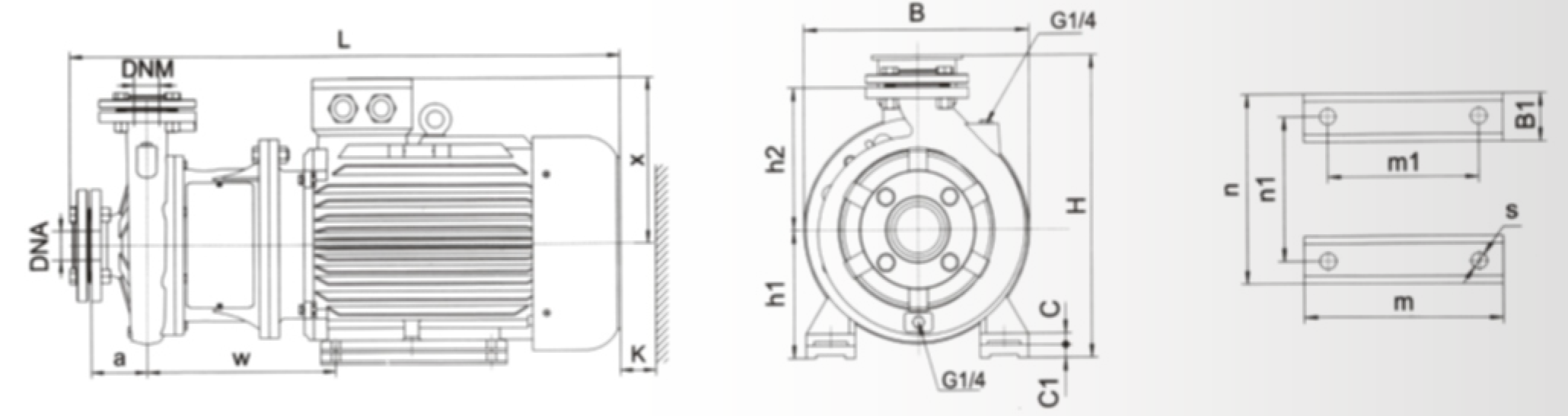

Installation Drawing(7.5kWand above)

PumpModel	DNM	DNA	a	h2	W	x	B1	C	c1	h1	m	ml	n	n1	s	B	H	L	K
40-250/92	40	65	100	225	310	260	65	20	20	180	260	210	320	254	15	350	440	845	110
40-250/110	40	65	100	225	310	260	65	20	20	180	260	210	320	254	15	350	440	845	110
40-250/150	40	65	100	225	310	260	65	20	20	180	260	210	320	254	15	350	440	845	110
50-200/92	50	65	100	200	310	260	65	20	—	160	260	210	320	254	15	350	420	845	120
50-200/110	50	65	100	200	310	260	65	20	—	160	260	210	320	254	15	350	420	845	120
50-250/150	50	65	100	225	310	260	65	20	20	180	260	210	320	254	15	350	440	845	110
50-250/185	50	65	100	225	310	260	65	20	20	180	304	254	320	254	15	350	440	895	110
50-250/220	50	65	100	225	323	275	70	25	—	180	311	241	355	279	15	350	455	925	110
65-160/92	65	80	100	200	310	260	65	20	—	160	260	210	320	254	15	350	420	845	125
65-160/110	65	80	100	200	310	260	65	20	—	160	260	210	320	254	15	350	420	845	125
65-160/150	65	80	100	200	310	260	65	20	—	160	260	210	320	254	15	350	420	845	125
65-200/150	65	80	100	225	310	260	65	20	20	180	260	210	320	254	15	350	440	845	125
60-200/185	65	80	100	225	310	260	65	22	20	180	304	254	320	254	15	350	440	895	125
60-200/220	65	80	100	225	323	275	70	25	—	180	311	241	355	279	15	355	455	925	125
65-250/220	65	80	100	250	253	275	70	25	—	180	311	241	355	279	15	355	455	956	125
65-250/300	65	80	100	250	365	305	70	30	—	200	369	305	395	318	19	400	505	1026	125
65-250/370	65	80	100	250	315	305	70	30	—	200	369	305	395	318	19	400	505	1026	125
80-160/110	80	100	125	225	315	260	65	20	—	160	260	210	320	254	15	350	420	870	130
80-160/150	80	100	125	225	315	260	65	20	—	160	260	210	320	254	15	350	420	870	130
80-160/185	80	100	125	225	315	260	65	20	—	160	304	254	320	254	15	350	420	926	130
80-200/220	80	100	125	250	352	275	70	25	—	180	311	241	355	279	15	355	461	946	130
80-200/300	80	100	125	250	365	305	70	30	—	200	369	305	395	318	15	400	505	1016	130
80-250/370	80	100	125	280	365	305	70	30	—	200	369	305	395	318	15	400	508	1016	120
80-250/450	80	100	125	280	381	330	75	30	—	225	404	311	435	356	19	450	555	1016	120
80-250/550	80	100	125	280	433	365	80	30	30	280	450	349	490	406	24	550	646	1160	120

Model Description

The structure characteristics
Pump casing dimensions in accordance with the provisions of EN733
Pump casing cast iron material, flange connection
Butt flange cast iron, according to ISO228/1
Timer: cast iron or stainless steel
Motor: Class Fgeo rating
IP54 protection class

Main purpose
Water supply
Pressurisation
Irrigation
Central air-conditioning water circulation
Fire-fighting water supply
Trade union water
Agricultural water

Working conditions
Flow rate up to 220m³/h
Lift up to 95m
Suction range up to 7m
Temperature of pumped liquid-10℃-90℃
Ambient temperature-10℃-40℃
Maximum operating pressure:10bar(PN10)
Motor allows continuous long time operation S1

Technical Parameters

Mode	Power		l/ min	Flow rate Q=DELIVERY
	Power		l/ min	0	100	150	250	300	400	450	600	700	800	900	1200	1400	1500	1800	2000	2300	3000	3500
	KW	HP	m³/h	0	6	9	15	18	24	27	36	42	48	54	72	84	90	108	120	138	180	210
32-125/07★	0.75	1	H (m)	17.5	16.7	15	12	9
32-125/11★	1.1	1.5		22	21	19.7	16.5	14.5	9
32-160/15★	1.5	2		25.4	23.7	22.5	18.5	15.8
32-160/22★	2.2	3		31	29.6	28.5	24.5	22	15
32-160/30★	3	4		35	34.3	34	28	25.5	19	15
32-200/30★	3	4		44.2	43	39.8	35.2	32.2	24.6	19.8
32-200/40★	4	5.5		54.5	52	50	45.5	41.9	35	30.3
32-250/55★	5.5	7.5		79.5	74.7	71.8	63	56	37.5
32-250/75★	7.5	10		99.5	95	91.8	83	76	57.8
40-125/11	1.1	1.5		14.7				13.5	11.5	10.1	5.8
40-125/15	1.5	2		18.1				17	15	13.9	9.6	6
40-125/22	2.2	3		24.5				23.2	21.5	20.2	16	13	8.3
40-160/30	3	4		31.8				29.5	27.5	26.3	21.5	17.5
40-160/40	4	5.5		38				36	34	33	28.5	25	20.1
40-200/55★	5.5	7.5		46				43.8	41.3	40.1	35	30
40-200/75★	7.5	10		57				53.6	51.5	50	45	41	36.5
40-250/92★	9.2	12.5		64				59	56.5	55	49.5	45	39.8
40-250/110★	11	15		72				67.5	65	63.5	57.5	52.2	47
40-250/150★	15	20		84.5				80	77.3	75.2	71	65	61
50-125/22	22	3		17							15.4	14	12.8	11.5	6.5
50-125/30	3	4		20							18.8	18	17	15.6	11
50-125/40	4	5.5		24							23.1	23	21.5	20.3	15.8	11.8
50-160/55	5.5	7.5		32							30.6	30	28	26.6	20.5	14.8
50-160/75	7.5	10		40							38	37	36	34.4	29	24
50-200/92★	9.2	12.5\|		50.5							46.8	45	43	40.9	32.5	25.7	21

Mode	Power		I/ min	Flow rate Q=DELIVERY
	Power		I/ min	0	100	150	250	300	400	450	600	700	800	900	1200	1400	1500	1800	2000	2300	3000	3500
	KW	HP	m³/h	0	6	9	15	18	24	27	36	42	48	54	72	84	90	108	120	138	180	210
50-200/110★	11	15	H (m)	57.5							53.5	52	50	47.5	40	33	29
50-250/150★	15	20		68.5							64	63	61.5	59	50	41
50-250/185★	18.5	25		77							73.2	72	70	68	60.5	51.5	47
50-250/220★	22	30		86.3							83	81.5	80.8	78.7	70	61.9	57
65-125/40	4	5.5		19									17.3	16.8	14.5	13	11.8
65-125/55	5.5	7.5		23									21.3	20.9	19	17.5	16.7	13.7
65-125/75	7.5	10		27									26	25.6	24.5	23	22.5	20	18
65-160/92	9.2	12.5		33										31.5	30	28	27.1	24	21.5
65-160/110	11	15		36										34.5	33	31.5	30.8	28	25.5
65-160/150	15	20		42										41	40	38.5	37.8	35	33	29.5
65-200/150	15	20		45										45.5	43	41	40.2	36.5	34
65-200/185	18.5	25		52										52.3	51	49	48.2	44.5	42
65-200/220	22	30		59										59.5	58	56	55	52	49.5	44.5
65-250/220	22	30		62										61.5	58.2	56.5	54	49	45
65-250/300	30	40		76										75	73	71.5	69.5	64.5	61.5	54
65-250/370	37	50		90										88.3	86.5	84	83	78	75	68
80-160/110	11	15		27													27.3	26	24.5	22.5	16
80-160/150	15	20		32.8													32.5	31.3	30.2	28.5	22.1	16.7
80-160/185	18.5	25		39													38	36.8	36.7	33.8	28.8	23.5
80-200/220	22	30		48													47.5	45.5	43.5	41	32.5	24.5
80-200/300	30	45		60													59.5	58	57	54.5	47	40.5
80-250/370	37	50		71.5													70.5	67.5	65.5	61.5	49.5	38.5
80-250/450	45	61		80													80.5	78.5	76.5	73.4	63.2	51
80-250/550	55	75		92.5													93.5	91.2	89.8	86.8	77.6	68.3

Keywords:

Since 2012

Taizhou Werto Mechanical & Electrical Co., Ltd.

Taizhou Werto Mechanical & Electrical Co., Ltd. is a company which specialized in water pumps and electric motors for the R&D,manufacture and sales.Our company was founded in 2012 and located in China ‘s pump town,Wenling,Zhejiang,China. We are one of modern enterprises which acquire the core technology of water pumps and electric motors,we implement modernization management ,all our products are in conformity with ISO9001 international standard. Besides we have all necessary automation machineries and equipments to keep high productivity and stable quality.

Related Products

V1500F submersible sweage pump

THF-6B 3Inch Mass Flow Centrifugal Pump(New Style)

small household centrifugal water pump

Your contact details

Note: Please leave your contact information and our professionals will contact you as soon as possible!

TF Standardized Centrifugal Pump

Summary:

INSTALLATION AND USE
Suitable for use in civil and agricultural applications.The high efficiency and continuous duty capabilities makes these pumps ideal for use in activities such as flood and spray irrigation,gardening,agriculture,drawing water from lakes, rivers and wells,or for any number of different industrial applications where the characteristics of high flow rates and middle to low head are required. The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.

MOTOR FEATURE
Insulation ClassB
Protection IP44
Thermal protector
Continuous service S1
Two-pole induction motor
Single-phase 220V/50Hz,60Hz on demand
Three-phase 380V/50Hz,60Hz on demand

OPERATING CONDITION
Suction lift up to 8m
Liquid temperature up to 60°C
Ambient temperature up to 40°C

Classification:

Standardized Centrifugal Pump
