WERTO 4SD Agricultural Machinery Submersible Deep Well Pump

PRODUCT DESCRIPTION

Components	Material
Pump external casing	AISl 304 SS
Delivery casing	Cast-Cu ASTM280
Suction lantern	Cast-Cu ASTM280
Diffuser	Plastic.PC
lmpeller	Plastic.POM
Shaft	1.AISI 316 SS 2.AISI 304 SS
Shaft coupling	1.AISI 316 SS 2.AISI 304 SS
Wear ring	AISI 304 SS
Motor external casing	AISI 304 SS
Top cover	Cast-Cu ASTM280
Bottom support	AISI 304 SS
Mechanical seal	Special seal for deep well(carbon-SIC/TC)
Shaft	AISI 304 SS-C1045
Bearing	C&U
Seal lubricant oil	Oil for food machinery and pharmaceutic use.

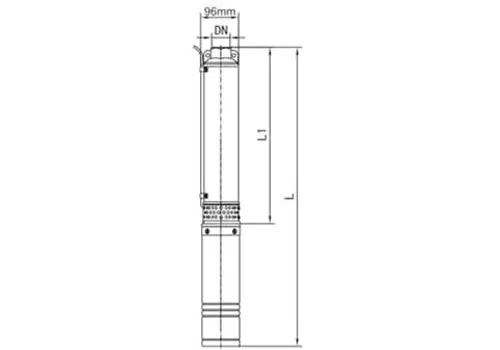

MODEL		DN	DIMENSIONS(mm)			WEIGHT(kg)
1- 220V/240v	3- 380V/415V	DN	L1	L(s)	L(T)	G(s)	G(T)
4SDM2/8	4SD2/8	1¼"/1½"	422	734	719	11	10
4SDM2/11	4SD2/11	1¼"/1½"	497	824	809	12	11
4SDM2/14	4sD2/14	1¼"/1½"	571	918	898	14	13
4SDM2/20	4SD2/20	1¼"/1½"	752	1139	1099	17	15
4SDM2/26	4sD2/26	1¼"/1½"	9o0	1347	1287	20	18
4SDM2/32	4sD2/32	1¼"/1½"	1067	1603	1514	26	22
4SDM2/36	4SD2/36	1¼"/1½"	1166	1702	1613	27	23
-	4SD2/44	1¼"/1½"	1396	-	1873	-	27
-	4SD2/52	1¼"/1½"	1595	-	2146	-	31
-	4sD2/60	1¼"/1½"	1793	-	2344	-	33

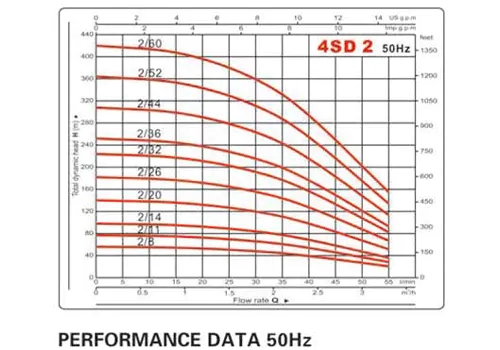

MODEL		P2		DELIVERY n= 2850 r/min
1- 220V/240V	3- 380V/415V	KW	HP	Q	m³/h l/min	0	0.3	0.6	0.9	1.2	1.5	1.8	2.1	2.4	2.7	3.0	3.3
1- 220V/240V	3- 380V/415V	KW	HP	Q	m³/h l/min	0	5	10	15	20	25	30	35	40	45	50	55
4SDM2/8	4SD2/8	0.37	0.5	H(m)		56	56	55	54	53	51	48	44	39	33	27	21
4SDM2/11	4SD2/11	0.55	0.75			n7	76	76	75	73	70	66	61	54	46	37	28
4SDM2/14	4SD2/14	0.75	1			98	97	97	95	92	89	84	77	69	58	47	36
4SDM2/20	4SD2/20	1.1	1.5			140	139	138	136	132	127	120	111	98	83	67	52
4SDM2/26	4SD2/26	1.5	2			182	181	179	176	172	165	156	144	127	108	88	67
4SDM2/32	4SD2/32	2.2	3			224	222	221	217	211	203	191	177	157	133	108	83
4SDM2/36	4SD2/36	2.2	3			252	250	248	244	238	228	215	199	176	149	121	93
-	4SD2144	3	4			308	306	304	298	29o	279	263	243	216	183	148	114
-	4SD2152	4	5.5			364	361	359	353	343	329	311	288	255	216	175	134
-	4SD2/60	4	5.5			420	417	414	407	396	38o	359	332	294	249	202	155

MODEL		DN	DIMENSIONS(mm)			Weight(kg)
1- 220V/240v	3- 380V/415V	DN	L1	L(s)	L(T)	G(s)	G(T)
4SDM3/7	4SD3/7	1¼"/1½"	412	724	709	11	10
4SDM3/9	4SD3/9	1¼"/1½"	466	793	778	12	11
4SDM3/12	4SD3/12	1¼"/1½"	547	894	874	13	12
4SDM3/17	4SD3/17	1¼"/1½"	681	1068	1028	16	14
4SDM3/22	4SD3/22	1¼"/1½"	847	1294	1234	20	17
4SDM3/26	4SD3/26	1¼"/1½"	955	1491	1402	25	21
4SDM3/30	4SD3/30	1¼"/1½"	1083	1619	1530	26	22
-	4SD3/36	1¼"/1½"	1244	-	1721	-	25
-	4SD3142	1¼"/1½"	1437	-	1988	-	30
-	4SD3148	1¼"/1½"	1598	-	2149	-	31
-	4SD3/54	1¼"/1½"	1760	-	2381	-	35
-	4SD3/60	1¼"/1½"	1921	-	2542	-	36

MODEL		P2		DELIVERY n=2850 r/min
1- 220V/240V	3- 380V/415V	KW	HP	m³/h l/min	0	0.6	1.2	1.8	2.4	3	3.6	4.2	4.8
1- 220V/240V	3- 380V/415V	KW	HP	m³/h l/min	0	10	20	30	40	50	60	70	80
4SDM3/7	4SD3/7	0.37	0.5	H(m)	51	50	48	46	43	38	31	22	12
4SDM3/9	4SD3/9	0.55	0.75		65	64	62	59	55	49	39	28	15
4SDM3/12	4SD3/12	0.75	1		87	86	83	79	74	65	53	38	20
4SDM3/17	4SD3/17	1.1	1.5		124	121	118	112	104	92	75	54	29
4SDM3/22	4SD3/22	1.5	2		160	157	152	145	135	119	96	70	37
4SDM3/26	4SD3/26	2.2	3		189	185	180	171	159	141	114	82	44
4SDM3/30	4SD3/30	2.2	3		218	214	208	198	184	163	132	95	51
-	4SD3/36	3	4		262	257	249	237	221	195	158	114	61
-	4SD3/42	4	5.5		305	300	291	277	258	228	184	133	71
-	4SD3/48	4	5.5		349	342	332	316	294	260	210	152	81
-	4SD3/54	5.5	7.5		392	385	374	356	331	293	237	171	91
-	4SD3/6o	5.5	7.5		436	428	415	395	368	325	263	190	101

MODEL		DN	DIMENSIONS(mm)			WEIGHT(kg)
1- 220V/240V	3- 380V/415V	DN	L1	L(s)	L(T)	G(s)	G(T)
4SDM4/6	4SD4/6	1¼"/1½"2"	397	709	694	11	10
4SDM4/8	4SD4/8	1¼"/1½"2"	454	781	766	12	11
4SDM4/10	4SD4/10	1¼"/1½"2"	512	859	839	13	12
4SDM4/14	4SD4/14	1¼"/1½"2"	627	1014	974	16	14
4SDM4/18	4SD4/18	1¼"/1½"2"	742	1189	1129	19	17
4SDM4/22	4SD4/22	1¼"/1½"2"	889	1425	1336	25	20
4SDM4/25	4SD4/25	1¼"/1½"2"	976	1512	1423	25	21
-	4SD4/32	1¼"/1½"2"	1197	-	1674	-	25
-	4SD4/40	1¼"/1½"2"	1459	-	2010	-	30
-	4SD4/48	1¼"/1½"2"	1689	-	2310	-	35
-	4SD4/52	1¼"/1½"2"	1805	-	2426	-	36

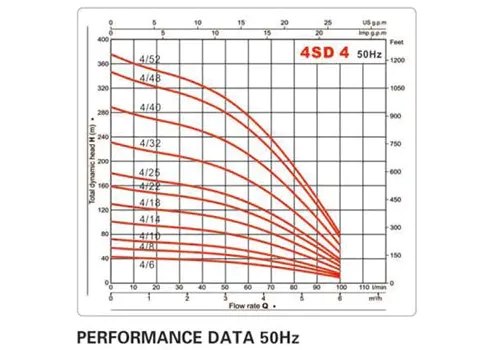

MODEL		P2		DELIVERY n= 2850 r/min
1- 220V/240V	3- 380V/415V	KW	HP	m³/h L/min	0	0.6	1.2	1.8	2.4	3	3.6	4.2	4.8	5.4	6
1- 220V/240V	3- 380V/415V	KW	HP	m³/h L/min	0	10	20	30	40	50	60	70	80	9o	100
4SDM4/6	4sD4/6	0.37	0.55	H(m)	43	42	40	39	37	35	32	27	22	16	g
4SDM4/8	4SD4/8	0.55	0.75		58	56	54	52	50	47	42	36	29	21	12
4SDM4/10	4sD4/10	0.75	1		72	69	67	65	62	58	53	46	37	27	16
4SDM4/14	4SD4/14	1.1	1.5		101	97	94	91	87	82	74	64	51	37	22
4SDM4/18	4SD4/18	1.5	2		130	125	121	117	112	105	95	82	66	48	28
4SDM4/22	4SD4/22	2.2	3		159	153	148	143	137	128	116	100	81	59	34
4SDM4/25	4SD4/25	2.2	3		181	174	168	162	156	146	132	114	92	67	39
-	4SD4/32	3	4		231	222	215	208	199	186	169	146	118	86	50
-	4SD4/40	4	5.5		289	278	268	260	249	233	211	182	147	107	62
-	4SD4148	5.5	7.5		347	333	322	312	299	280	253	219	176	128	75
-	4SD4152	5.5	7.5		376	361	349	338	324	303	274	237	191	139	81

MODEL		DN	DIMENSIONS(mm) WEIGHT(kg)
1- 220V/240V	3- 380V/415V	DN	L1	L(s)	L(T)	G(s)	G(T)
4SDM6/5	4SD6/5	1¼"/1½"2"	397	709	694	11	10
4SDM6/7	4SD6/7	1¼"/1½"2"	458	785	770	12	11
4SDM6/9	4SD6/9	1¼"/1½"2"	519	866	846	13	12
4SDM6/12	4SD6/12	1¼"/1½"2"	611	998	958	16	14
4SDM6/15	4SD6/15	1¼"/1½"2"	703	1150	1090	19	17
4SDM6/18	4SD6/18	1¼"/1½"2"	795	1331	1242	24	20
4SDM6/21	4SD6/21	1¼"/1½"2"	918	1454	1365	25	21
-	4SD6/25	1¼"/1½"2"	1041	-	1518	-	24
-	4SD6/30	1¼"/1½"2"	1194	-	1745	-	28
-	4SD6/35	1¼"/1½"2"	1347	-	1968	-	32
-	4SD6/41	1¼"/1½"2"	1562	-	2183	-	34
	4SD6/46	1¼"/1½"2"	1715		2426	-	39

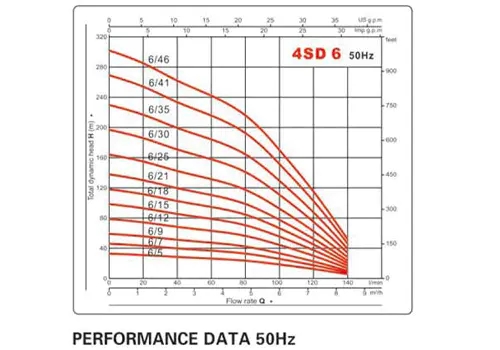

MODEL		P2		DELIVERY n=2850 r/min
1- 220v/240v	3- 380V/415V	KW	HP	Q	m³/h	0	1.2	2.4	3.6	4.8	6	7.2	8.4
1- 220v/240v	3- 380V/415V	KW	HP	Q	l/min	0	20	40	60	80	100	120	140
4SDM615	4SD6/5	0.37	0.5	H(m)		33	31	28	26	23	18	12	6
4SDM6/7	4SD6/7	0.55	0.75			46	43	40	37	33	26	17	8
4SDM6/9	4SD6/9	0.75	1			59	56	51	47	42	33	22	10
4SDM6/12	4SD6/12	1.1	1.5			79	74	68	63	56	44	30	14
4SDM6/15	4SD6/15	1.5	2			98	93	85	79	70	55	37	17
4SDM6/18	4SD6/18	2.2	3			118	112	103	95	85	67	45	20
4SDM6/21	4SD6/21	2.2	3			138	130	120	110	g9	78	52	24
-	4SD6/25	3	4			164	155	142	132	117	92	62	28
-	4SD6/30	4	5.5			197	186	171	158	141	111	75	34
-	4SD6/35	4	5.5			230	217	199	184	164	129	87	40
-	4SD6/41	5.5	7.5			269	254	234	216	193	152	103	46
-	4SD6/46	5.5	7.5			302	285	262	242	216	170	115	52

MODEL		DN	DIMENSIONS(mm)			WEIGHT(kg)
1- 220V/240v	3- 380V/415V	DN	L1	L(s)	L(T)	G(s)	G(T)
4SDM8/5	4SD8/5	1¼"/1½"2"	434	761	746	12	11
4SDM8/7	4SD8/7	1¼"/1½"2"	510	857	837	13	12
4SDM8/9	4SD8/9	1¼"/1½"2"	586	973	933	16	14
4SDM8/12	4SD8/12	1¼"/1½"2"	700	1147	1087	19	17
4SDM8/15	4SD8/15	1¼"/1½"2"	814	1350	1261	24	20
4SDM8/17	4SD8/17	1¼"/1½"2"	89o	1426	1337	25	20
-	4SD8/21	1¼"/1½"2"	1074	-	1551	-	24
-	4SD8/26	1¼"/1½"2"	1264	-	1815	-	29
-	4SD8/30	1¼"/1½"2"	1416	-	1967	-	30
-	4SD8/36	1¼"/1½"2"	1644	-	2265	-	34
-	4SD8/40	1¼"/1½"2"	1827	-	2448	-	36

MODEL		P2		DELIVERY n = 2850 r/min
1- 220V/240V	3- 380V/415V	KW	HP	m³/h l/min	0	1.2	2.4	3.6	4.8	6	7.2	8.4	9.6	10.8
1- 220V/240V	3- 380V/415V	KW	HP	m³/h l/min	0	20	40	60	8o	10o	120	140	160	180
4SDM815	4SD8/5	0.55	0.75	H(m)	32	30	28	26	25	23	21	18	13	8
4SDM8/7	4SD8/7	0.75	1		45	42	39	37	35	33	3o	25	18	11
4SDM8/9	4SD8/9	1.1	1.5		58	54	51	47	45	42	38	32	24	15
4SDM8/12	4SD8/12	1.5	2		77	72	68	63	60	56	51	43	32	20
4SDM8/15	4SD8/15	2.2	3		97	go	84	79	75	70	63	53	39	24
4SDM8/17	4SD8/17	2.2	3		110	102	96	9o	85	79	72	60	45	28
-	4SD8/21	3	4		135	127	118	111	104	98	89	75	55	34
-	4SD8/26	4	5.5		168	157	146	137	129	122	110	92	68	42
-	4SD8/30	4	5.5		194	181	169	158	149	140	127	107	79	49
-	4SD8/36	5.5	7.5		232	217	203	19o	179	168	152	128	95	59
-	4SD8/40	5.5	7.5		258	241	225	211	199	187	169	142	105	65

MODEL		DN	DIMENSIONS(mm)			WEIGHT(kg)
1- 220V/240v	3- 380V/415V	DN	L1	L(s)	L(T)	G(s)	G(⒄)
4SDM10/4	4SD1014	1¼"/1½"2"	396	723	708	11	11
4SDM10/6	4SD10/6	1¼"/1½"2"	472	819	799	13	12
4SDM10/8	4SD10/8	1¼"/1½"2"	548	935	895	16	14
4SDM10/10	4SD10/10	1¼"/1½"2"	624	1071	1001	19	16
4SDM10/12	4sD10/12	1¼"/1½"2"	700	1236	1137	24	19
4SDM10/14	4SD10/14	1¼"/1½"2"	776	1312	1213	24	20
-	4SD10/17	1¼"/1½"2"	890	-	1367	-	23
-	4SD10/21	1¼"/1½"2"	1074	-	1625	-	27
-	4SD10/25	1¼"/1½"2"	1226	-	1847	-	31
-	4SD10/28	1¼"/1½"2"	1340	-	1961	-	32
-	4SD10/32	1¼"/1½"2"	1492	-	2203	-	37
-	4SD10/36	1¼"/1½"2"	1644	-	2355	-	39

MODEL		P2		DELIVERY n= 2850 r/min
1- 220V/240V	3- 380V/415V	kW	HP	Q	m³/h l/min	0	1.8	3.6	5.4	7.2	9	10.8	12.6	14.4
1- 220V/240V	3- 380V/415V	kW	HP	Q	m³/h l/min	0	30	60	90	120	150	180	210	240
4SDM1014	4SD10/4	0.55	0.75	H(m)		24	23	22	20	19	16	13	10	6
4SDM1016	4SD10/6	0.75	1			36	34	32	3o	28	24	20	15	8
4SDM1018	4SD10/8	1.1	1.5			48	46	43	41	37	33	27	20	11
4SDM10/10	4SD10/10	1.5	2			60	57	54	51	47	41	34	25	14
4SDM10/12	4SD10/12	2.2	3			72	69	65	61	56	49	40	30	17
4SDM10/14	4SD10/14	2.2	3			84	80	76	71	65	57	47	35	20
-	4SD10/17	3	4			102	97	92	86	79	69	57	42	24
-	4SD10/21	4	5.5			126	120	114	107	98	86	71	52	30
-	4SD10/25	5.5	7.5			150	143	135	127	117	102	84	62	35
-	4SD10/28	5.5	7.5			168	160	152	142	131	114	94	70	40
-	4SD10/32	7.5	10			192	183	173	163	149	131	108	80	45
-	4SD10/36	7.5	10			216	206	195	183	168	147	121	90	51

Keywords:

Since 2012

Taizhou Werto Mechanical & Electrical Co., Ltd.

Taizhou Werto Mechanical & Electrical Co., Ltd. is a company which specialized in water pumps and electric motors for the R&D,manufacture and sales.Our company was founded in 2012 and located in China ‘s pump town,Wenling,Zhejiang,China. We are one of modern enterprises which acquire the core technology of water pumps and electric motors,we implement modernization management ,all our products are in conformity with ISO9001 international standard. Besides we have all necessary automation machineries and equipments to keep high productivity and stable quality.

Related Products

ZGL2-50T Japanese Cast Aluminum Pump

ZGL4-20 Multistage Centrifugal Pump

ZGL2-20 Multistage Centrifugal Pump

Your contact details

Note: Please leave your contact information and our professionals will contact you as soon as possible!

WERTO 4SD Agricultural Machinery Submersible Deep Well Pump

Summary:

Applications

For water supply from wels or reservoirs.

For domestic use,for civil and industrial applicatior

For garden use and irigation,

Operating conditions

Maximurm fluid temperature up to +35'C

Maximum sand content:0.25%

Maximum immersion:80m

Minimum well diameter:4'

Motor and Pump

Rewindable motor or Full obturated screen motor

Three-phase:380V-415V/50Hz

Single-phase:220V-240V/50Hz

Pumps are designed by casing stressed

Curve tolerance according to ISO 2548

Options on request

Equip digital auto-control box

Special mechanical seal

Other voltages or frequency 60 Hz

Warranty: 1 year

(according to our general sales conditions).

Classification:

4SD Submersible Deep Well Pump
