PRODUCT DESCRIPTION
| COMPONENT | CONSTRUCTION CHARACTERISTICS |
| PUMP BODY | Cast iron |
| PUMP SUPPORT | Aluminum |
| MOTOR HOUSING | Aluminum |
| IMPELLER | Brass (PPO or AISI304 SS on demand) |
| MOTOR SHAFT | Carbon steel, AISI304 SS on request |
| MECHANICAL SEAL | Ceramic/Graphite |
| BEARINGS | 6201 RZ/6201 RZ(0.5HP&0.7HP), 6203 RZ/6202 RZ(1HP) |
 |

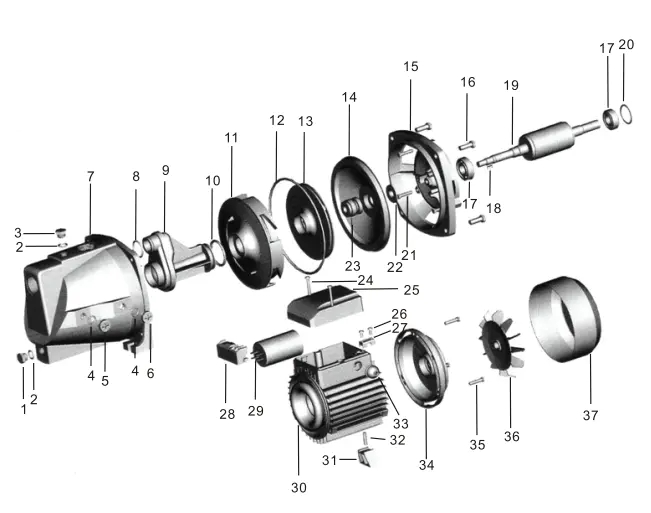

N.DESCRIPTION |
N.DESCRIPTION |
||
|
1 |
Discharge plug |
19 |
Rotor |
|
|
2 |
“o"ring |
20 |
Split ring |
|
|
3 |
Charge plug |
21 |
Bolt |
|
|
4 |
“O” ring |
22 |
Drops guard |
|
|
5 |
Gange plug |
23 |
Mechanical seal |
|
|
6 |
Switch plug |
24 |
Bolt |
|
|
7 |
Pump casing |
25 |
Terminal cover |
|
|
8 |
"O" ring |
26 |
Screw |
|
|
9 |
Venturi pipe |
27 |
Cable presser |
|
|
10 |
“O" ring |
28 |
Terminal board |
|
|
11 |
Diffuser |
29 |
Capacitor |
|
|
12 |
“O" ring |
30 |
Casing with wound stator |
|
|
13 |
lmpeller |
31 |
Stand |
|
|
14 |
Pump casing cover |
32 |
Stand pin |
|
|
15 |
Pump support |
33 |
Fairlead |
|
|
16 |
Bolt |
34 |
Driving cap |
|
|
17 |
Bearing |
35 |
Bolt |
|
|
18 |
Key |
36/37 |
Fan and fan cover |
|
|
MODEL |
INLET/OUTLET |
POWER |
Q mh |
0 |
0.3 |
0.6 |
0.9 |
1.2 |
1.5 |
1.8 |
2.4 |
2.7 |
3 |
3.6 |
4.2 |
4.8 |
|
|
single phase |
Inch |
KW |
HP |
l/min |
0 |
5 |
10 |
15 |
20 |
25 |
30 |
40 |
45 |
50 |
60 |
70 |
80 |
|
JSW/1CE |
1×1 |
0.37 |
0.50 |
H m |
35 |
32 |
27 |
24 |
21 |
19 |
17 |
15 |
14 |
13 |
|||
|
JSW/1BE |
1×1" |
0.50 |
0.70 |
41 |
36 |
31 |
27 |
24 |
22 |
20 |
17 |
16 |
15 |
||||
|
JSW/10M |
1×1 |
0.75 |
1 |
46 |
44 |
41 |
39 |
37 |
35 |
32 |
3o |
28 |
25 |
22 |
21 |
19 |
|
H=TOTAL HEAD IN METERS. Q=FLOW RATE
Keywords:
Since 2012
Taizhou Werto Mechanical & Electrical Co., Ltd.
Taizhou Werto Mechanical & Electrical Co., Ltd. is a company which specialized in water pumps and electric motors for the R&D,manufacture and sales.Our company was founded in 2012 and located in China ‘s pump town,Wenling,Zhejiang,China. We are one of modern enterprises which acquire the core technology of water pumps and electric motors,we implement modernization management ,all our products are in conformity with ISO9001 international standard. Besides we have all necessary automation machineries and equipments to keep high productivity and stable quality.
Your contact details
Note: Please leave your contact information and our professionals will contact you as soon as possible!
JSW-10M Electric High Lift Water Pump Self-Priming Jet Pump
Summary:
INSTALLATION AND USE
Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
The self-priming JET pumps are designed to pump water even in cases where air is present. As a result of their reliability and the fact that they are easy to use, they are recommended for use in domestic applications such as the distribution of water in combination with small or medium sized pressuresets, and for the irrigation of gardens and allotments, etc. The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.
MOTOR FEATURE
lnsulation ClassB
Protection IP44
Thermal protector
Continuous service S1
Two-pole induction motor
Single-phase 220V/50Hz, 60Hz on demand
Three-phase 380V/50Hz, 60Hz on demand
OPERATING CONDITION
Suction lift up to 8m
Liquid temperature up to 60°C
Ambient temperature up to 40°C
